Microwave level switch VEGAMIP R62

for liquidsfor bulk materialsfor silos

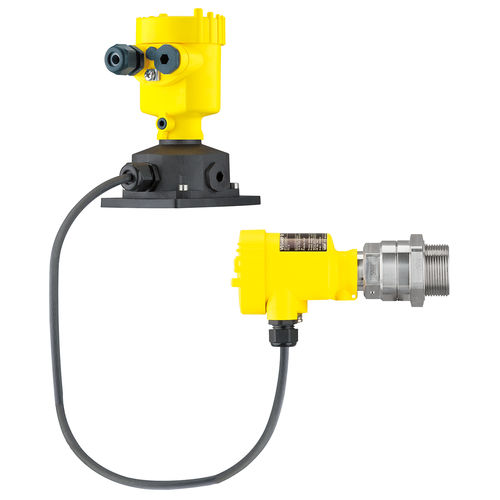

Microwave receiver in separate version for level detectin of bulk solids and liquids Application area The non-contact measuring method has no direct contact with the medium and thus guarantees continuous, wear and maintenance free operation. Detached version for use in poorly accessible or dangerous mounting locations. The VEGAMIP R62 is the receiving unit of the microwave emitter VEGAMIP T61 in separate version for level detection of bulk solids and liquids. Typical applications are the detection of bulk solids in silos, bunkers and crushers as well as liquids in tubes and vessels. The non-contact measuring principle has no direct contact to the medium and guarantees wear and maintenance-free permanent operation. Your benefit Separate instrument version enables mounting in installation positions difficult to access Reliable measurement even with very abrasive products Reliable measurement even with changing product features Measuring range - Distance 100 m Process temperature -40 ... 80 °C Process pressure -1 ... 4 bar Version hygienically encapsulated horn antenna for separate horn antenna with horn antenna ø 40 mm with horn antenna ø 48 mm with horn antenna ø 75 mm with horn antenna ø 95 mm with plastic horn antenna ø 80 mm Horn antenna ø 1½" with encapsulated horn antenna Materials, wetted parts PTFE 316L 1.4848 PP Threaded connection ≥ G1½, ≥ 1½ NPT Flange connection ≥ DN50, ≥ 2" Hygenic fittings Slotted nut ≥ 2", DN50 - DIN 11851 Varivent ≥ DN25 DRD connection ø 65 mm for NEUMO BioControl D50 PN16 / 316L Seal material FKM FFKM Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
