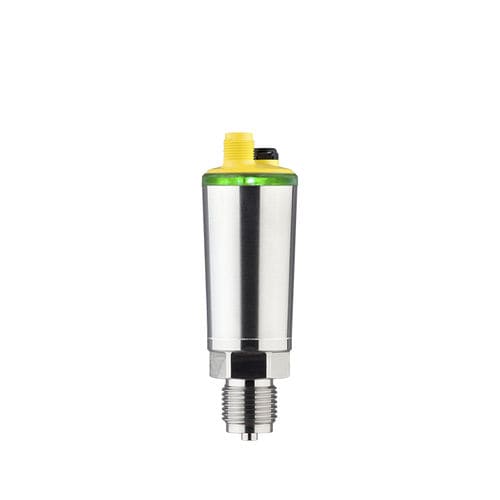

Relative pressure transmitter VEGABAR 28
ceramicanalogwireless

Relative pressure transmitter - VEGABAR 28 - VEGA TECHNIQUE - ceramic / analog / wireless
Relative pressure transmitter - VEGABAR 28 - VEGA TECHNIQUE - ceramic / analog / wireless
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
ceramic
Output
analog, wireless
Mounting
threaded
Fluid
for gas, for liquids
Material
stainless steel
Protection level
IP65, ATEX, IP68
Pressure range

Max.: 60 bar
(870.23 psi)

Min.: -1 bar
(-14.5 psi)

Process temperature

Max.: 130 °C
(266 °F)

Min.: -40 °C
(-40 °F)

Description

Pressure sensor with switching function With ceramic measuring cell Application area From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° switching status display VEGABAR 28 is a universal pressure transmitter with ceramic measuring cell for measurement of gases, vapours and liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping. Your benefit Convenient wireless setup and diagnostics with smartphone Coloured 360° switching status display, adjustable Easy integration into control systems through IO-Link communication Measuring range - Pressure -1 ... 60 bar Process temperature -40 ... 130 °C Accuracy 0.3 % Materials, wetted parts PVDF Duplex (1.4462) Ceramic 316/316L Threaded connection ≥ G½, ≥ ½ NPT Hygenic fittings Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1" - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ DN25 - DIN 11851 Slotted nut ≥ DN32 - DIN 11851 SMS 1145 DN51 SMS DN38 Hygienic fittings ≥ DN25 - DIN11864-1-A Hygienic fittings ≥ DN40 - DIN11864-1-A Varivent N50-40 SMS DN25 Ingold connection PN10 Varivent F25 Seal material EPDM FKM FFKM Protection rating IP65 IP68 (0,5 bar)/IP69 Output 4 … 20 mA Three-wire (PNP/NPN, 4 … 20 mA) IO-Link Ambient temperature -40 ... 70 °C Approvals Scope ATEX / Europe IEC / worldwide Explosion protection Intrinsic safety Ex ia Foodstuffs/Pharma FDA EG1935/2004 Ship approval DNV GL djustment PC, PACTware and DTM Smartphone / Tablet / PC via Bluetooth Indication 360° switching status indication
