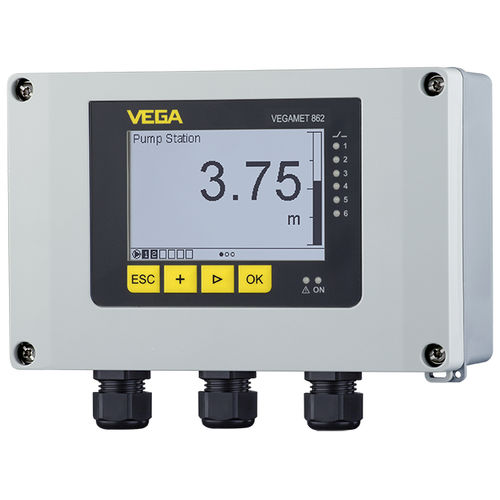

Digital signal conditioner VEGAMET 862

4-20 mAexplosion-proofultra-rugged

Robust controller and display instrument for level sensors For two 4 … 20 mA/HART sensors Application area 4 ... 20 mA/HART sensor inputs, digital inputs, 4 ... 20 mA current outputs, operating relays, fail safe relays, Ex approval, on-site display, 4-button and smartphone operation The VEGAMET 862 controller feeds the connected 4 ... 20 mA or HART sensors, processes the measured values and displays them. A large display for data visualisation is integrated in the housing designed for rough field conditions. It enables a simple conversion of pump controls, flow measurements on open channels and weirs, totalizers, data loggers, difference, sum and average value calculations. With VEGAMET 862, limit values can be monitored reliably and relays can be switched, e.g. for an overfill protection according to WHG. Your benefit Complex programming of control tasks is no longer necessary Simple and safe setup and diagnosis of measuring points via smartphone Easy-to-read display from a distance, even in sunlight and darkness Technical specifications Protection rating IP66/IP67, Type 4X Input 2x 4 … 20 mA/HART sensor input 4x digital input Output 3 x 0/4 … 20 mA current output 1x failure relay (instead of operating relay) 6x operating relay Ambient temperature -40 ... 60 °C Display & adjustment Adjustment On-site adjustment Smartphone / Tablet / PC via Bluetooth Indication LCD matrix display, black and white Backlight with colour change acc. to status
