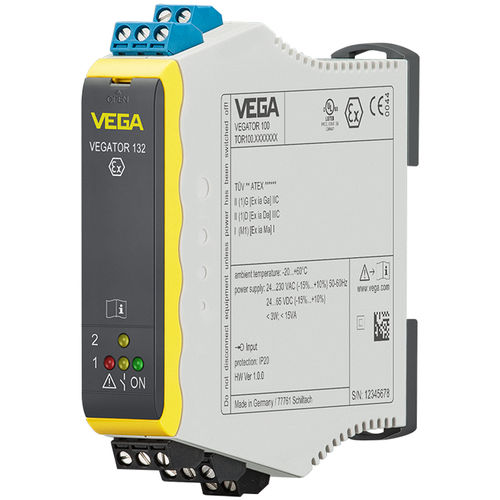

Multi-channel signal conditioner VEGATOR 132

DIN railfor level sensing

Double channel controller for level detection for conductive probes Transmission of conductive input signals for level alarm (double channel) Application area The VEGATOR 132 is a double channel controller for conductive probes series EL. Applications are level detections and pump controls. In conjunction with multiple rod or cable probes, several VEGATOR 132 can be combined with one probe. Your benefit Simple installation though carrier rail mounting as well as detachable, coded terminals Integrated fault monitoring with LED display detects short-circuit and line break Two independent level detections or one mon./max. control /two-point control= Technical specifications Protection rating IP20 Input 2x input for conductive rod probe Output 2 x operating relay (SPDT) Ambient temperature -20 ... 60 °C Approvals Scope ATEX / Europe IEC / worldwide INMETRO / Brazil Ship approval GL LR Display & adjustment Adjustment DIP switch Indication LED
