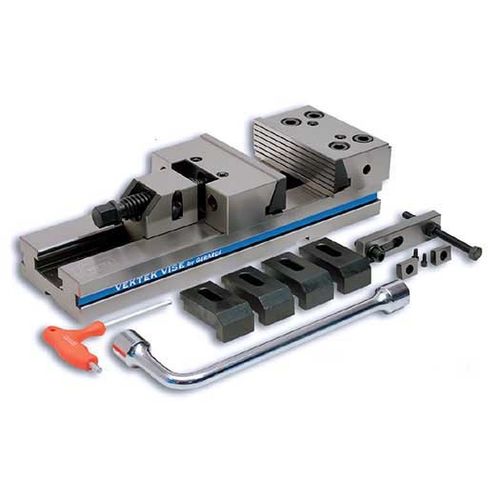

Machine vise V30 series
horizontalscrewsteel

Machine vise - V30 series - Vektek - horizontal / screw / steel
Machine vise - V30 series - Vektek - horizontal / screw / steel
Machine vise - V30 series - Vektek - horizontal / screw / steel - image - 2
Machine vise - V30 series - Vektek - horizontal / screw / steel - image - 3
Add to favorites
Compare this product


Characteristics

Applications
machine
Configuration
horizontal, screw
Other characteristics
steel
Max. clamping force

25 kN, 30 kN

Stroke

150 mm, 200 mm, 300 mm, 400 mm, 500 mm
(6 in, 8 in, 12 in, 16 in, 20 in)

Description

Vektek Standard Vise - Features The Most Popular • All steel construction hardened and ground HRc 60 • Accuracy within 0.0008" • Gang operation • Pull down jaws • Space saving design • No wear (5 year warranty) • Unlimited clamping range 1 VERSATILITY The prismatic jaw (ordered separately) has a 5mm X 5mm step allowing you to clamp plates and “V” slots to hold round workpieces either vertically or horizontally. 2 HIGHEST ACCURACIES +/- 0.00078” Solid vise base. Every sliding and coupling surface is ground. Centesimal tolerances are guaranteed by checking cycles with CNC measuring machine. The perfect alignment with the machine axis is given by longitudinal and cross keyways. 3 RIGIDITY AND SAFETY Both jaw bodies are built in one solid piece to guarantee higher rigidity and no bending. The jaw plates are designed with a pull down angle. During the clamping operation, a downward force is created holding the workpiece against the vise base for precise and safe clamping. 4 JAW HOLES FOR SPECIAL APPLICATIONS Four extra tapped holes over the jaws for special Vektek stack type jaw application.
