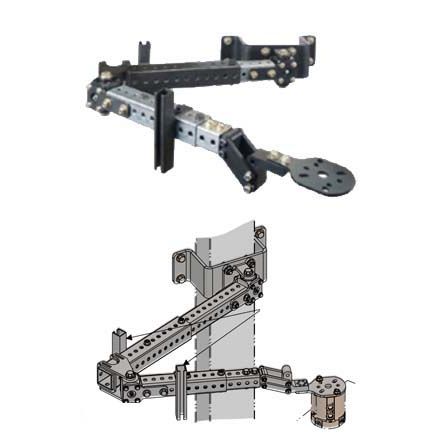

Articulated arm 64-4050-00

Model No. - Z-Axis Travel - Includes 64-4050-00 - Up to 48 Inches - Arm and hose clamp rail • An anti-rotation device for Vektek rotating unions. • Reduce cost and hassle of live hydraulic integration of Vektek pumps or continuously connected PO Check industrial pumps. • Use on single or dual pallet machines where pallet travels parallel to spindle axis. • Telescoping members promote flexibility during installation. • Two hose clamp mounting rails included. All clamps and additional rails can be ordered below. • Rotary union interface eliminates premature rotary union failure by preventing the weight of the arm from applying damaging side loads to the rotary union. • Rotary Union Arm designed to attach to all Vektek Hydraulic Rotary Unions. Easily swap out interface plate to attach most rotary unions. • Each joint contains tapered roller bearings for excellent load holding with smooth actuation. • Standard Z-axis travel up to 48 inches, longer travels available. • Optional hose clamps available below.
