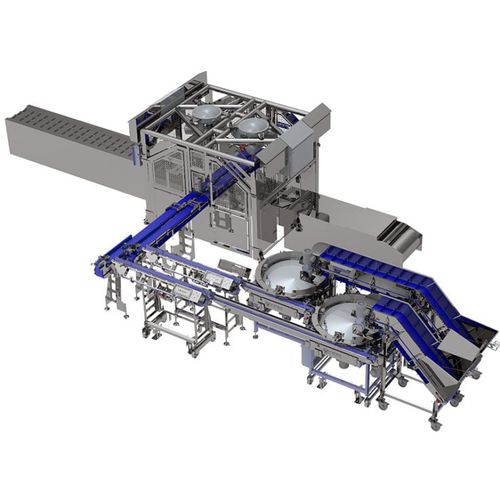

Hotdogs loading system

automated

Highly flexible and versatile machine – Load all types of sausages: soft, brittle, flexible, steef, peeled or skined – Load in all directions: parallel and perpendicular – Load all packing configuration: single or multiple layers, with possibly different number per layers – Quick change over thanks to preset recipes and dismountable grippers The maximum care for your sausage Thanks to centrifugal force, products get reorganized by themselves without mechanical constraint. It avoid to break any sausage to maximize your quality and efficiency. Velec hygienic design – 100 % stainless steel IP69K solution (motors, gears, sensors, robot, venturi) – Open and round structure to avoid retention area – Food grade belt dismountable without tools – Equipment at human level to ease access, supervision and sanitation Performance Diameter: 16mm to 32mm Lentgh: up to 260mm (longer on demand) Output: single line – up to 600 units.min-1 / dual line – up to 1200 units.min-1 Energy: 400V – 50/60Hz – 32Kw ( for a single line) Air pressure: 6 bars – 60m3/h
