External-gear hydraulic pump VGP - 4V Series
cast ironfor vehiclescompact

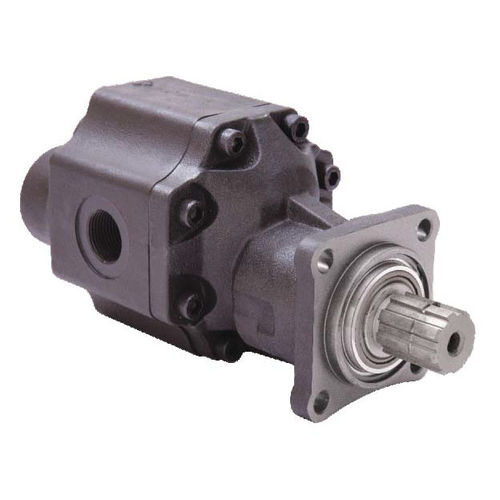

External-gear hydraulic pump - VGP - 4V Series - Veljan Hydrair Limited - cast iron / for vehicles / compact

External-gear hydraulic pump - VGP - 4V Series - Veljan Hydrair Limited - cast iron / for vehicles / compact - image - 2

Add to favorites

Compare this product

Characteristics

Type

external-gear

Material

cast iron

Applications

for vehicles

Other characteristics

compact, standard, bi-directional

Pressure

240 bar
(3,481 psi)

Speed

2,700 rpm
(16,965 rad.min-1)

Max.: 4,200 rpm
(26,389 rad.min-1)

Min.: 1,800 rpm
(11,310 rad.min-1)

Fluid viscosity

Max.: 2 m²/s

Min.: 1 m²/s

Description

Model No. : VGP - 4V Series Maximum Pressure (psi) : 3500 Max. Displacement (in³/rev) : 4.0 - 5.0 Max. Displacement (cm³/rev) : 65 - 83 Mounting Standard : SAE - C Features • Veljan truck hydraulic gear pumps are ideal for truck applications. • Two piece construction • These are designed for applications requiring high pressure levels also at low speed. • The 3V & 4V Series gear pumps are light and compact to suit most applications. • They can be installed in both the ways either rear or side mounted. • The 4V-Series is compact and built for heavy duty applications. • Maintenance free ,Long service life • These pumps are bi-directional for easy to install • Italian (triangular) and ISO Mountings standards • High performance at very low speed • Designed to compact size for easy installation even in a small vehicles Application • Tripper trucks • Truck - mounted cranes • Lift - trucks etc.,
