Vertical positioning stage BiSlide®MN10

manualprecisiondovetail

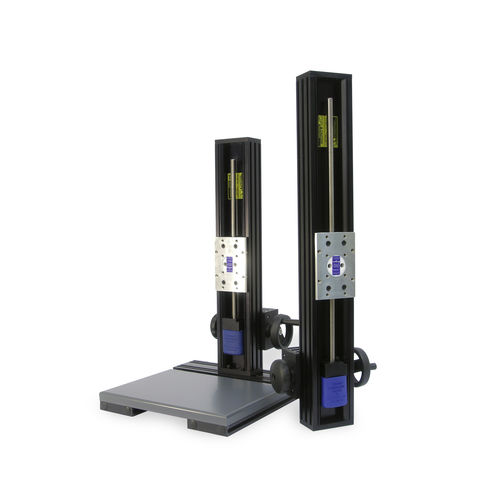

The Side Knob BiSlide delivers effective rotary to linear motion by using a right angle timing belt drive connected to a fine pitch lead screw. The motion allows the slide to move a payload up and down into position smoothly and precisely. Constructed with hard-coat anodized, aluminum dovetail ways and smooth motion PTFE bearings; BiSlide Assemblies deliver higher rigidity for longer life and more precise movement. The manually-operated Side Knob Assembly has a peak load capacity of 40 lbs. (18.1 kg.) Three typical test stand travel heights are available – 5, 10 and 15 inches (12.7, 25.4 and 38.1 cm respectively) – or a custom height Side Knob BiSlide can be designed. he Side Knob BiSlide Assembly has three style options based on the mounting of the Knob and Lock: - • Mounting – Lock Left / Knob Right • Mounting – Knob Left / Lock Right • Mounting – Knob Left / Knob Right
