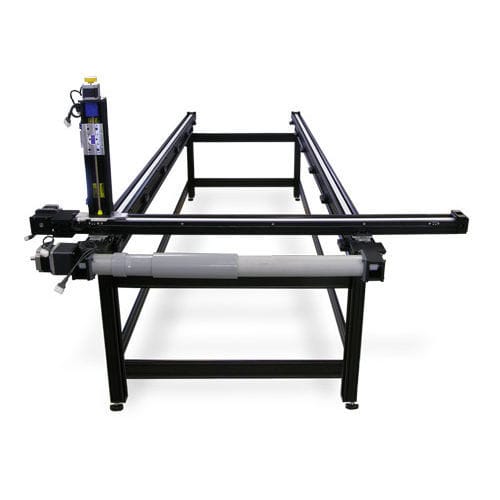

Linear positioning stage PC2B

motorizedaluminumdovetail

The Velmex BiSlide positioning stage's modular design makes it highly configurable for a multitude of different motion-control applications. Motorized BiSlide Systems are available in linear models with travel distances up to 228 inches. Constructed with hard-coat anodized, aluminum dovetail ways and smooth motion PTFE bearings; BiSlides deliver higher rigidity for longer life and more precise movement. BiSlides have a load capacity of 300 lbs. (136 kg.) horizontally and 100 lbs. (45.4 kg.) vertically. Straight-line accuracy is 0.003" (0.076 mm) over entire travel distance. Repeatability is 0.0002 inch (0.005 mm). Because BiSlide components are interchangeable, they can easily be reconfigured as the need arises. One, two, three axis systems and more are created by simply bolting together standard components utilizing the advantages of T-slot framing.
