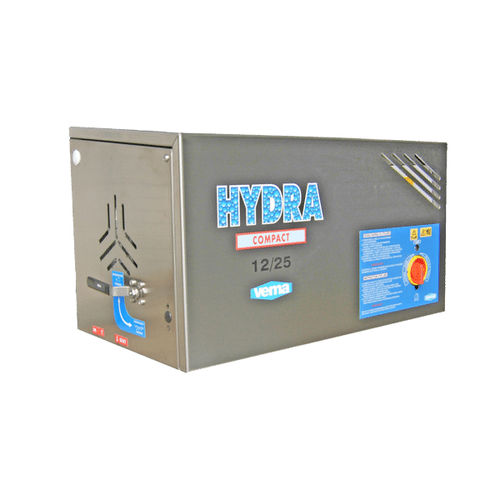

Water washing system Hydra 12/25

industrialstainless steelcompact

Wall mounted or mobile medium pressure Washing machine 12 bar max The Hydra compact 12/25 is a latest generation low pressure washing machine designed and produced by VEMA to satisfy the demands of an increasingly more selective and demanding market. The frame, pump and all control components are entirely made from stainless steel to satisfy the user’s expectations and guarantee incomparable long term reliability with minimum noise levels. Easy to use, compact, with a low maintenance requirement and excellent long term durability, it saves on both water and detergent by optimising all washing phases, obtaining excellent results. The pump absorbs just 1.3 kW, produces a pressure of about 12 bars with a maximum flow rate of 35 l/min and can be used with hot water up to 90°C The controls are low voltage (24 V) and a delayed total stop function shuts down the system when the lance is closed. As with all low to medium pressure systems, compressed air must be introdu-ced for foaming. Water consumption during foaming is just 4 l/min with coverage of about 50/60 m2 per minute and detergent consumption of less than 3%. Finally, if compressed air is not available, a version with built-in compressor is also available. The Hydra 12/25 is also among the most rational washing machines to operate, as to start washing the operator simply turns the lever on the front panel and inserts the lance.
