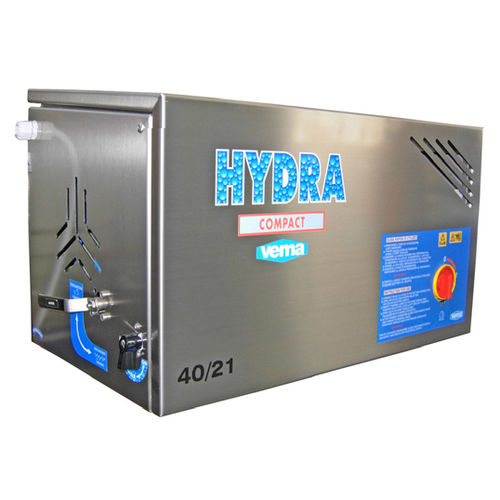

Water washing system Hydra 40/21

industrialstainless steelcompact

Wall mounted or mobile medium pressure Washing machine 40 Bar Max The Hydra compact 40/21 is a genuine evolution among the medium/low pressure systems. Unique in its sector for compactness, low noise levels, reliability and standard accessories, it enables foaming, rinsing and disinfection processes to be optimised. The system already incorporates all components, from the electrical panel to the 100% stainless steel dispensing system for foaming and disinfection, creating a highly reliable integrated combination to satisfy all sanitising needs. The frame is in stainless steel and all parts of the machine can be easily inspected for servicing and control. The pump absorbs just 2.5 kW, produces a pressure of about 40 bars with a flow rate of 21 l/min and is suitable for use with hot water up to 75°C. The controls are low voltage (24 V) and a delayed total stop function shuts down the system when the lance is closed. As with all low to medium pressure systems, compressed air must be introduced to produce the foam. The Hydra 40/21 is also one of the most rational washing machines to use as the operator simply needs to turn the knob on the front panel and insert the lance.
