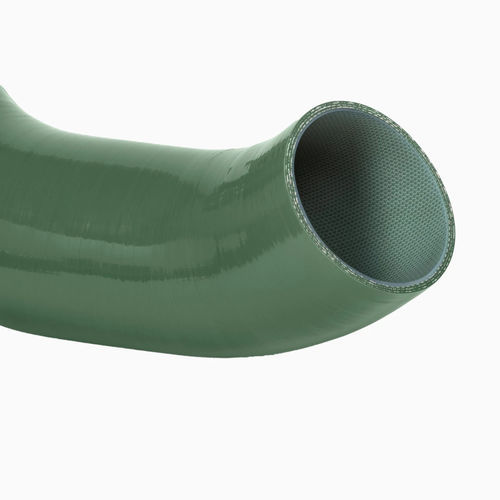

Water hose Vena® PEM PURE
for oxygensiliconecooling

Water hose - Vena® PEM PURE - Venair - for oxygen / silicone / cooling
Water hose - Vena® PEM PURE - Venair - for oxygen / silicone / cooling
Water hose - Vena® PEM PURE - Venair - for oxygen / silicone / cooling - image - 2
Add to favorites
Compare this product


Characteristics

Use
for water, for oxygen
Material
silicone
Applications
cooling, for polymer electrolyte fuel cell
Other characteristics
smooth, UV-resistant, high-resistance
Inner diameter

Max.: 100 mm
(3.937 in)

Min.: 6 mm
(0.236 in)

Pressure

Max.: 16.2 bar
(234.961 psi)

Min.: 1.7 bar
(24.656 psi)

Temperature

Max.: 180 °C
(356 °F)

Min.: -60 °C
(-76 °F)

Description

Vena® PEM PURE is specially designed to fulfill the main requirements to use in the cathode and cooling of PEM (polymer electrolyte membrane) Fuel Cell systems. Applications Mostly used in subsystems that require the minimum electrical conductivity, since it has been specifically designed for PEMFC which generally require the minimum conductivity. Also very interesting according to its very low permeability rate. Also recommended for the low level of critical pollutants it releases. So it is mostly always required for the anode and cathode subsystems, very often also required on the coolant due to very low conductivity. - Excellent purity – Extremely low extractables and volatile compounds content. - Low conductivity.
