Insulation bushing PTC

flangeplug-inEPDM

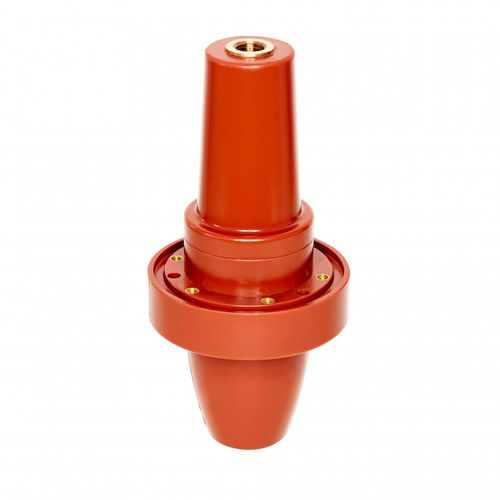

Red epoxy resin bushing for cable connection EN 50181 for SF6 gas insulated devices. It is fixed on the tank through OT58 built in brass fittings. This insulator has a lateral capacitive outlet and it is supplied with an EPDM O-ring gasket and safety plastic cap for EN 50181 connection. Upon request a fixing set can be supplied for this insulator. It includes: aluminum flange (with eyelets for 250A and 400A versions), screws, washers and insulating spacer for the capacitive output. APPLICATIONS Indoor, with plug-in cable connection, SF6 insulated devices. TECHNICAL DATA Highest voltage for equipment (Um): 24kV – 36kV Rated current (Ir): 250A – 400A – 630A Capacitive outlet for voltage presence detection CUSTOMIZATIONS Customizations are available. REFERENCE STANDARDS EN 50181, IEC 60137
