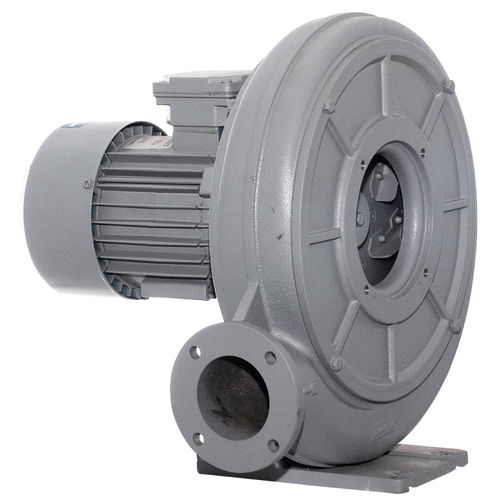

High-pressure fan HPB-F seriescentrifugaldryingaluminum
Add to favorites
Compare this product
Characteristics
- Type
- high-pressure
- Configuration
- centrifugal
- Function
- drying
- Material
- aluminum
- Applications
- for pneumatic conveying
- Air flow
Max.: 6,000 m³/h
(211,888 ft³/h)Min.: 280 m³/h
(9,888.107 ft³/h)
Description
Application
Pneumatic conveying systems, blow-drying systems (e.g. graphic machines and plastics processing), airflow in combustion / heat treatment systems (e.g. melting furnaces) etc.
Construction
High-pressure centrifugal fans with direct drive. Riveted impeller made of aluminum sheet, with B-type blades. Impellers made of other materials are available upon request. Housing made of aluminum alloy. Base made of welded steel sheet.
Fans are designed for transporting non-aggressive and non-explosive dust-free gases. As standard: RAL 7042 - grey, in selected sizes: motor - RAL 5010.
As a standard, HPB-F fans are manufactured in a LG270 configuration, there is a possibility to change the configuration to any LG; on request, the fans are designed in a RD configuration.
