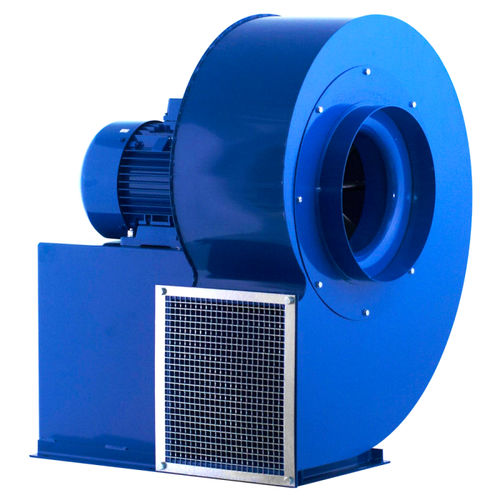

Centrifugal fan GMT series
exhaustindustrialmedium-pressure

centrifugal fan
centrifugal fan
Add to favorites
Compare this product


Characteristics

Configuration
centrifugal
Function
exhaust
Applications
industrial
Other characteristics
medium-pressure, backward curved
Air flow

Max.: 14,720 m³/h
(519,831.894 ft³/h)

Min.: 560 m³/h
(19,776.213 ft³/h)

Description

Application The GMT fans have found numerous applications in polluted air exhaust systems and pneumatic transport equipment. Typical applications: Local exhaust systems, dehumidifiers, dryers Transport of shavings, sawdust or granulates Combustion gas exhausting Construction GMT is a range of medium-pressure, directly driven centrifugal fans. The impeller is made of aluminium and has self-cleaning radial blades. It is dynamically balanced in accordance with ISO1940. Fan housing is welded from steel sheet and is performed in rectangular (models 60 to 600) or scroll (models 700 and larger) shape. Standard configuration of fans are RD90 (models 60 to 400) or LG270 (models 500 and larger). In order to support larger motors the fans are provided with motor support starting from model 500. Maximum temperature of transported medium is 80°C. On request, we can supply the fans in any color from the RAL palette (RAL 5010 - blue, is the standard color). Adjustments and customizations in the construction, execution, color or material of the fan are offered but require prior contact with Ventur tekniska AB.
