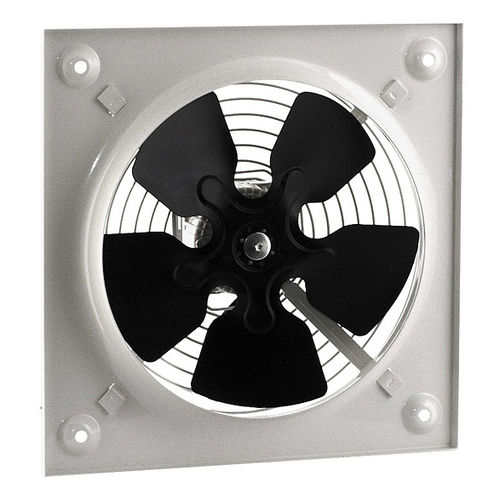

Wall-mounted fan HXM seriesaxialventilationindustrial
Add to favorites
Compare this product
Characteristics
- Type
- wall-mounted
- Configuration
- axial
- Function
- ventilation
- Applications
- industrial
- Air flow
470 m³/h, 810 m³/h, 1,180 m³/h, 1,680 m³/h, 3,670 m³/h
(16,597.893 ft³/h, 28,604.88 ft³/h, 41,671.307 ft³/h, 59,328.64 ft³/h, 129,604.827 ft³/h)
Description
Application
Plate mounted axial flow fans can be mounted in any position and are used for ventilation with a low level of contamination. Ideal for garages, basements, warehouses, e.t.c.
Construction
The fans are manufactured from pressed galvanized steel and protected from corrosion by a beige epoxy-polyester paint finish. All models include a steel fingerproof guard mounted on the inlet side of the fan. Impellers are manufactured from galvanized steel sheet and finished with black polyester paint. Standard air flow direction A - motor over impeller.
Motor
HXM-200 to HXM-350: Single phase speed controllable motor 230V-50/60Hz equipped with thermal protection, IP44, Class B insulation, flexible cable (length: 50cm) for connection to the electrical supplies and ball bearings greased for life. HXM-400: External rotor motor, IP44, Class F insulation, fitted with thermal protection and wiring terminal box.
