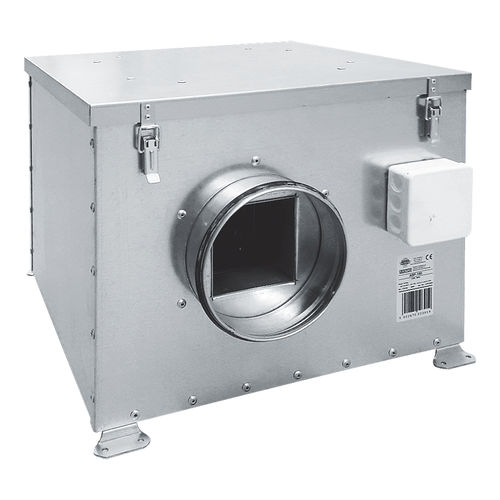

Low-noise fan ABF series

IP44centrifugalventilation

Application Due to their low noise level ABF fans are designed for ventilation of public buildings, offices, restaurants, warehouses, sound studios etc. Construction The fan casing is made of galvanized sheet steel with a sound insulation thickness of 50 mm (reaction class on fire Al). Inlet and outlet manifold with round profile with rubber gaskets. The open housing allows access to the rotor and motor without dismantling the fan from the installation. The housing cover is fitted with locks for fast inspection without additional tools. All models are also equipped with four mounting brackets to install the fan on the wall, floor or ceiling. Junction box mounted on IP55 enclosure. As standard the device is designed to be mounted directly to the outside. Motor Fans are equipped with single-phase motors 230V, 50Hz, IP44 protection rating, insulation class B. All motors are designed for voltage-controlled speed control. Motor fitted with protection Thermal (TP).
