Floor-standing fan AFE-500

mobileportableaxial

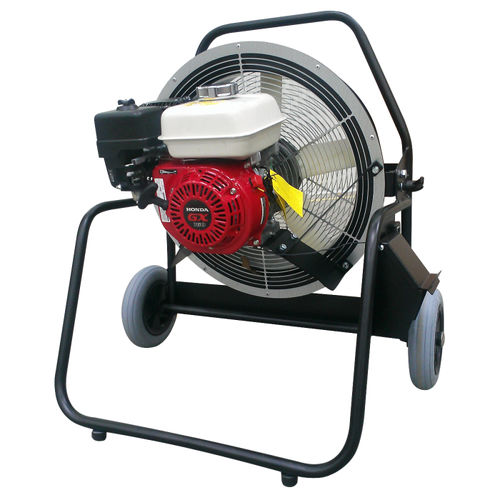

Mobile axial fan provided with combustion engine. Enclosure welded with steel sheet, powder painted. Impeller with aluminum blades and hub. Protective screens on fan inlet and outlet. Fan setting angle modification range: -25° to 25°. Portable axial fan provided with combustion engine. The enclosure is made of welded steel sheet, powder painted. The impeller with blades and hub made of aluminum. Protective guards for inlet and outlet of the fan. Fan setting angle modification range: -25o to +25o. Thanks to pneumatic wheels the fan can be easily transported anywhere, without the need to be carried. The fan is also equipped with an hour meter and tachometer, which allow you to control the fan operation time and its rotation speed. Combustion engine: Honda GX160 Yield up to 19 000 m3/h (at 3600 rev/min) Sound pressure level: 79 dB(A)* Operating time with full tank: 2,2 h (at 3600 rev/min) Weight: 51 kg Dimensions (L x W x H): 601 x 878 x 892 mm * Sound pressure level measured at a distance of 20m in an open space, at full engine speed and at ambient sound pressure of 49 dB(A) Engine type: four-stroke, OHV, air-cooled, horizontal shaft Cubic capacity: 163 cm3 Bore x stroke: 68 x 45 mm Maximum power: 3.6 kW (4.8 hp) / 3600 rev/min Maximum torque: 10.3 Nm / 1.05 kgm / 2500 rev/min Ignition system: Electronic Starter: manual (optional: electric starter) Fuel tank capacity: 3.1 l Fuel consumption: 1.4 l / h (3600 rev/min) Oil capacity: 0.6 l Dimensions (L x W x H): 312 x 362 x 346mm Weight: 15 kg
