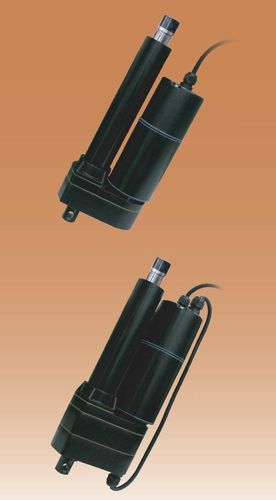

Linear actuator VI serieselectricball screwDC
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- ball screw
- Motor
- DC, AC
- Applications
- industrial
- Other characteristics
- custom, with potentiometer
- Stroke
Max.: 24 in
Min.: 2 in
- Force
5,782 N
- Speed
Max.: 2.2 in/s
(3,352.8 mm/min)Min.: 0.5 in/s
(762 mm/min)
Description
This versatile actuator is available in Acme or Ball screw and AC or DC versions. A clevis to clevis version of our 800 and 850 series actuator, it is utilized in many industrial applications including; Agricultural, Medical equipment, Lawn and Garden, ATV, Turf care, table lifts and many more.
Specialized Features and Benefits
Features of VI Series Actuator
Available in Strokes ~ 2 to 24 inches (custom lengths available)
20% Duty Cycle - typical (1 on / 4 off)
Adjustable Limit Switches
Feedback ~ Potentiometer
Load Rating ~ Up to 1300 lbs. compression and tension
0.5 to 2.2 inches per second clevis to clevis mounting
Thermally protected motor
Lifetime lubrication
Designed for outdoor use
Multiple mounting options
Available in 12, 24 and 36vdc PMDC type motors as well as
110 and 230vac versions
AC versions are UL/CSA approved
