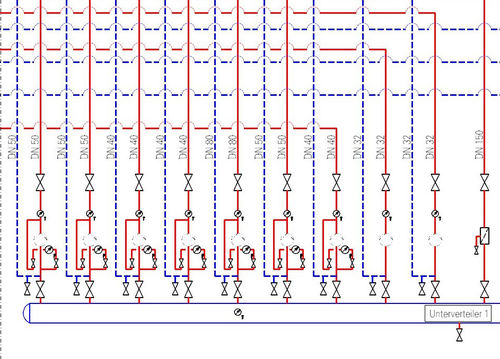

Schematic drawing software

The VenturisIT GmbH product - TRICAD MS® Module, is basically a 3D CAD software and aids in creating scalable schematics. The two prime functions 'automatic pipe recognition' and 'rubber band' helps in easy designing of the components and editing respectively. It is used in a wide applications like heating, fire protection layout, ventilation, sanitary, sprinklers, 3D piping, conveyor systems and domestic / industrial piping systems etc. Some salient features include component library support with an exclusive range of comprehensive intelligent component, automatic alignment of components, standard selection of media, materials and dimensions, single & double line mode.
