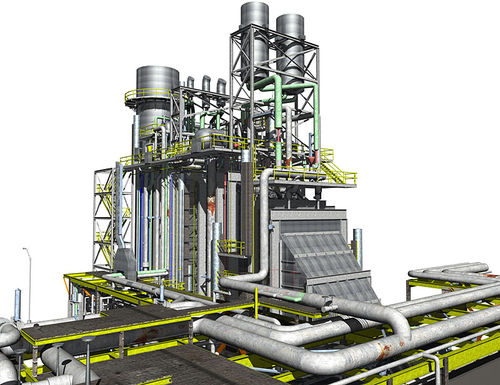

The 3D Piping manufactured by VenturisIT is a module used to design professional apparatus and pipeline models quickly and efficiently. Pipes can be designed after selecting the pipe class by drawing a line in 3D. Expansion parts of detailed sections of pipe can be moved along the course of the pipe using a "rubber band" editing function. Databases such as .mdb, SQL, Access or Oracle allow the data from the 2D drawing to be linked to the 3D model. Evaluation functions are also available, such as autorouting function and standard pipe categories. It features an apparatus module as a design assistant for tanks and apparatus, as well as an interface to the Iso X add-on module. In addition, this tool offers an equipment for all pipelines and components.
