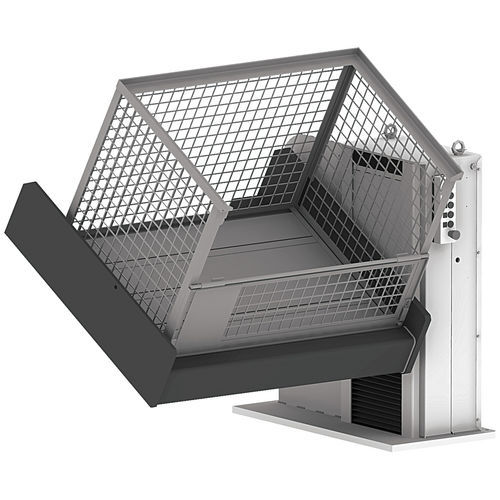

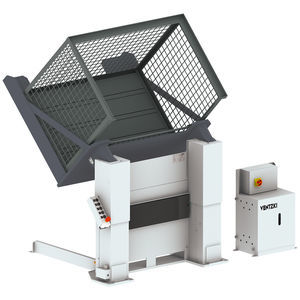

Hydraulic metal lifting and turning device HNE series

electricfor containersfor pallet

Lifting and tilting devices for pallets and large containers with electrohydraulic drive for space-saving and need-based use In a nutshell: •Suitable for holding pallets and large containers. •Tilting one-sided 45° (standard) or 2 x 45° as special equipment (HNE 3000 only possible 1 x 45°). •Load capacity, depending on the model, up to 3,000 kg. •Low-maintenance electrohydraulic drive. •Stepless setting of the working height and tilt angle. •All devices can be loaded either from the front or from the side. •Low-maintenance and trouble-free operation thanks to high quality, robust components Fields of application •Lifting and tilting of large-volume carriers •Automotive and automotive supply industries Product highlights •Stepless adjustment of the lifting and tilting position •Full lifting capacity in any lifting or tilting position •Stepping below possible on three sides •Device with rotary unit possible as special version
