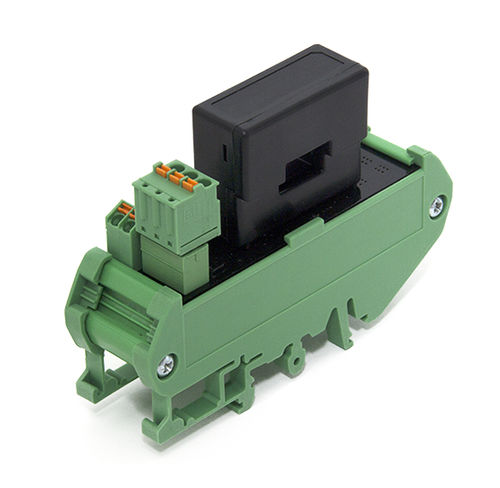

Hall effect current sensor Envoy SC series

DIN rail

Features Aperture based sensor does not require to change current path DC to 300kHz range of operation Industrial grade casing ±10V outputs for best connectivity to any DAQ DIN Rail mountable Details The Envoy SC is a single channel (SC) module designed for high-quality current measurements in the range from 50 to 300 Amperes. The IsoBlock Current-FG uses Hall Effect with closed loop methodology to measure the current flowing in the conductor passing through the aperture. This is followed by an anti-aliasing filter and a conditioning stage to output a ±10V signal. The compact form factor of the Envoy SC module allows users to setup high channel density monitoring systems, making it ideal for deployed and portable systems.
