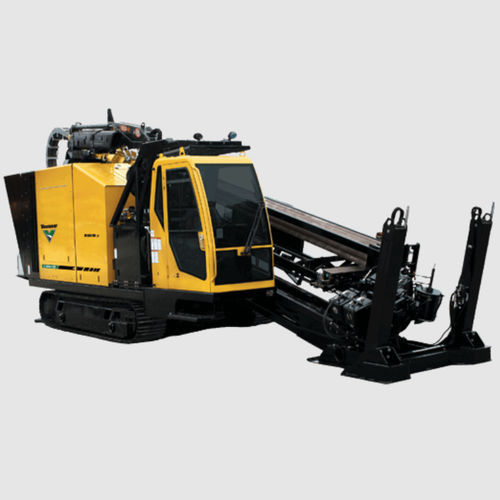

Horizontal directional drilling rig D100X140 S3 HDD

crawlerrotarydown-the-hole

With a maximum rotary torque output of 14,000 ft-lb (18,981.5 Nm) and rotational speeds up to 203 rpm, the D100x140 S3 Navigator® horizontal directional drill offers an exceptional one-two punch in response to your most challenging projects. To get you there and back, select between 15-ft or 20-ft (4.6-m or 6.1-m) lengths of 3.5-in (8.9-cm) Firestick® drill rod. Consider the 15 ft (4.6 m) to minimize your footprint, while selecting 20 ft (6.1 m) will offer increased onboard rod carrying capacity. FEATURES & BENEFITS Firestick drill rod Experience the difference that has made one-piece, forged Firestick® drill rod the industry benchmark. Stackable rod box With consideration to ease of use and safety, the D100x140 S3 stackable rod box design allows additional rod to be loaded via the upper rod box. When matched with the optional onboard crane, no additional support equipment is required to load additional rod. Wireless remote-controlled knuckle boom crane The D100x140 S3 is available with a wireless remote-controlled knuckle boom crane. At maximum reach of 19.5’ (6 m), the crane has a rated capacity of 3970 lb (1800.8 kg). Dual displays State-of-the-art dual displays offer easy visibility to a wide range of machine performance, diagnostic and drilling information. Angled, true open-top vises Equipped with angled, true open-top vises with an 8” (20.3 cm) opening, the D100x140 S3 offers good operator visibility during rod makeup/breakout. The true open-top design accommodates mud motors and other large tooling. Responsive and powerful clamping and breakout actions can boost cycle time efficiency.
