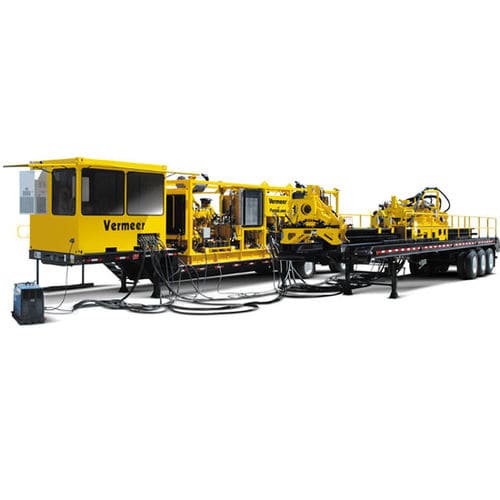

Horizontal directional drilling rig D1000X900 HDD

crawlerrotaryCaterpillar

Maximize your drilling muscle with the field-tested D1000x900. Loaded with feature after feature to improve performance, reliability and durability, the D1000x900 is equipped with dominating twin Caterpillar C-27 engines, producing a maximum of 92,000 ft-lb (124,735.3 Nm) of rotational torque and 1,000,000 lb (4,448.2 kN) of thrust/pullback. FEATURES & BENEFITS High-torque, low-speed Hagglunds hydraulic motors Operates efficiently with high-torque, low-speed Hagglunds hydraulic motors powering the rotary and carriage drives so you can run full torque and full rotary rpm simultaneously. Thrust box bearing-pack assembly Reduces stress on the motor, because the thrust box bearing-pack assembly is designed to absorb the axial load caused by thrust and pullback. Floating vise Helps prevent rod wrap or windup because its floating vise allows the breakout system to clamp the full rod upsets during breakout of the lower and upper joints. Higher torque Muscles through difficult ground formations with higher torque than other models.
