Process sterilizer

steammobilemedical

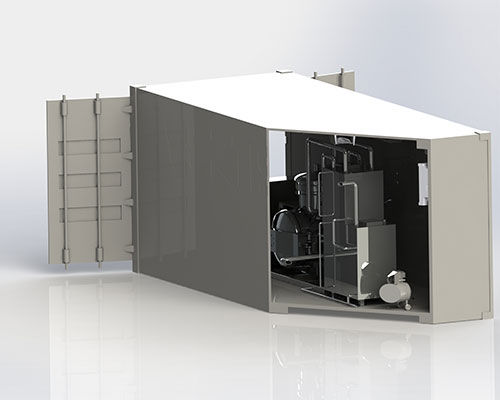

Vertisa Mobile Medical Waste Sterilization Solutions for Medical Waste Treatment and Disposal Mobile Medical Waste Treatment Unit, caters to many other customized demands, such as in stand alone wate steriilization facilities, military field hospital, emergency situations such as nature disaster and epidemic diseases, or taking care of marine and island’s medical waste. The system is composed of autoclavewith integrared shredder, boiler and if requeted dedicated power generator. It works 24/7 as long as water and diesel available. Loading At the begining of the cycle , once the upper lid opens, the automatic elevator empties the waste in the loading chamber. As the upper lid closes shredding starts. Shredding - The shredder, controlled by the PLC, changes rotation direction due to the “anti blocking” capability that prevents the blades to get jammed. Our special design shredder is capable of grinding very hard materials like surgical stainless steel instruments and hard ceramics. The mixing device in the upper chamber will provide the continuous feeding of the shredder. Heating / Sterilization Heating is achieved by injecting saturated steam until the homogeneous temperature in the upper and lower chamber reaches 134°C (274 F). Sterilization is completed by maintaining 134°C (274 F) - 138 °C (280 F) temperature and equivalent pressure for a period of 10 – 15 minutes. These factors provide the possibility to decrease the pathogenic contamination level in the medical waste by 8 Log 10 value.
