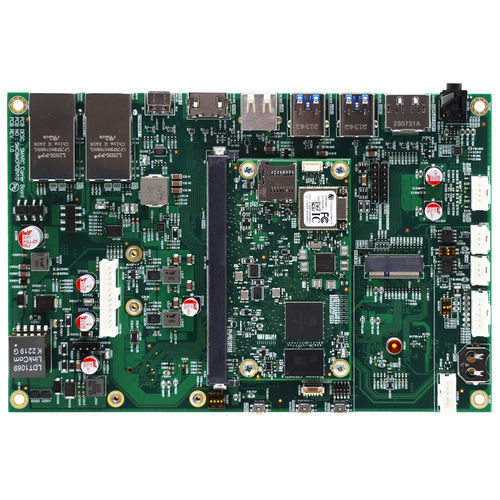

SMARC® development kit VEST-8MM-07-SMX-DEV

ARM® Cortex A53ARM Cortex-M4NXP i.MX8M Mini

Unleash the full potential of the NXP i.MX8M Mini, featuring ARM® Cortex®-A53 processor. This empowers Artificial Intelligence (AI) and Machine Learning (ML) capabilities, enhances multimedia performance, supports cutting-edge Edge Computing, provides robust video graphics, and enables rapid processing – all within a compact, cost-efficient, and power-efficient package. Specifications Up to Cortex®-A53 @ 1.8GHz, Cortex®-M4 @ 400MHz GC NanoUltra (1shader) OpenGL® ES 2.0, GC520L (2D) 2GB (up to 8GB) 32-bit LPDDR4-3000 8GB (up to 128GB) eMMC5.1 Yocto Linux, Ubuntu and Android 1080p60 H.264, VP8 1080p60 HEVC, H.264, VP9, VP8 HDMI 2.0a Tx | LVDS Connector with backlight for 7″ & 10″ LCD Panel | I2C Touch Connector for 7″ & 10″ LCD Panel Headphone Jack with Microphone Input | 4 Pin Header for Speaker L&R, Up to 10W/ch into 8ohm Load On SOM Board Dual Band Wi-Fi/Bluetooth Module (802.11a/b/g/n/ac and BT 5.0) 10/100/1000 BaseT RJ45 Ethernet with PoE, 2x CAN FD 1x USB 2.0/3.0 Type C with PD | 2x USB 2.0/3.0 Type A | 1x USB 2.0 Type A RS485 with 120ohm Termination Resistor (Default) or RS232 M.2 Key B Form Factor Expansion Daughter Board Socket | 4-Lane MIPI CSI x 2 | I2C x 2 | UART x 2 | SPI x 2 | GPIO PCIe M.2 Key E 2230 Form Factor | 1 Lane PCIe Gen 2.0 | USB | SDIO | I2S | UART | GPIO 2x Debug-UART Header, 2.54mm Pitch 5pin Header | JTAG-1.27mm Pitch 2 x 5 Pin Header PoE (25w/channel), USB-C (60w) 180mm x 120mm (Carrier Board) , 82mm x 50mm SMARC SOM Commercial | Industrial (Optional)
