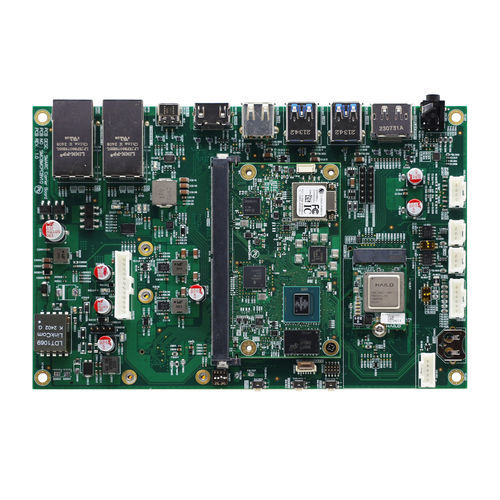

SMARC® development kit VEST-8MP-00-SMX-DEV

Hailo™Arm® Cortex®-A53 Quad-coreARM® Cortex M7 Quad-core

Unleash the full potential of the NXP i.MX8M Plus, featuring ARM® Cortex®-A53 processor and Neural Processing Unit (NPU). This empowers Artificial Intelligence (AI) and Machine Learning (ML) capabilities, enhances multimedia performance, supports cutting-edge Edge Computing, provides robust video graphics, and enables rapid processing – all within a compact, cost-efficient, and power-efficient package. Specifications Up to Cortex®-A53 @ 1.8GHz, Cortex-M7 @ 800MHz 1GC7000UL (2 shaders) OpenGL® ES 1.1/2.0/3.0/3.1, Open VG™ 1.1 , Vulkan®, Open CL™ 1.2 FP, GC520L (2D) Neural Processing Unit (NPU) Operating at up to 2.3 TOPS Support Hailo AI Accelerator module (Hailo-8™) up to 26 TOPs (Optional Upgrade) 2GB (up to 8GB) 32-bit LPDDR4 up to 4.0GT/s 8GB (up to 128GB) eMMC5.1 Yocto Linux, Ubuntu and Android HailoRT, LI-IMX715-MIPI Camera (Leopard Imaging) 1080p60 H.265, H.264 1080p60 HEVC, H.265, H.264, VP9, VP8 Cadence® Tensilica® HiFi 4 DSP @ 800MHz 2x MIPI CSI (4-lane each) 2x ISP up to 12 MP Resolution On SOM Board Dual Band Wi-Fi/Bluetooth Module (802.11a/b/g/n/ac and BT 5.0) 2x 10/100/1000 BaseT RJ45 Ethernet with PoE, 1x Ethernet with TSN Support, 2x CAN FD 1x USB 2.0/3.0 Type C with PD | 2x USB 2.0/3.0 Type A | 1x USB 2.0 Type A RS485 with 120ohm Termination Resistor (Default) or RS232 M.2 Key B Form Factor Expansion Daughter Board Socket | 4-Lane MIPI CSI x 2 | I2C x 2 | UART x 2 | SPI x 2 | GPIO PCIe M.2 Key E 2230 Form Factor | 1 Lane PCIe Gen 3.0 | USB | SDIO 2x Debug-UART Header, 2.54mm Pitch 5pin Header | JTAG-1.27mm Pitch 2 x 5 Pin Header PoE (25w/channel), USB-C (60w) 180mm x 120mm (Carrier Board) , 82mm x 50mm SMARC SOM Commercial | Industrial (Optional)
