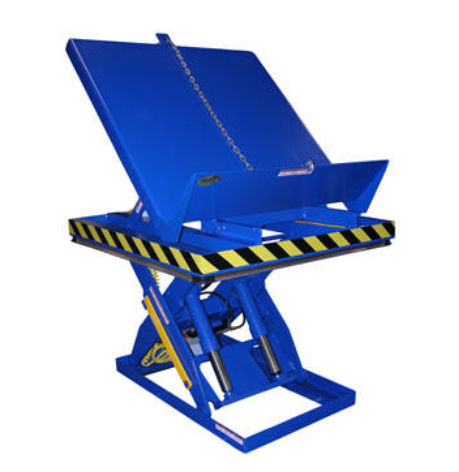

Scissor lift table EHLTT serieshydraulicstationarytilting
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- hydraulic
- Type
- stationary
- Application
- tilting
- Capacity
1,000 lb, 2,000 lb, 3,000 lb, 4,000 lb, 5,000 lb
(453.6 kg, 907.2 kg, 1,360.8 kg, 1,814.4 kg, 2,268 kg)- Lifting height
47 in, 49 in
Description
Performs both lifting and tilting operations. 45° tilt standard. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available. Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.
