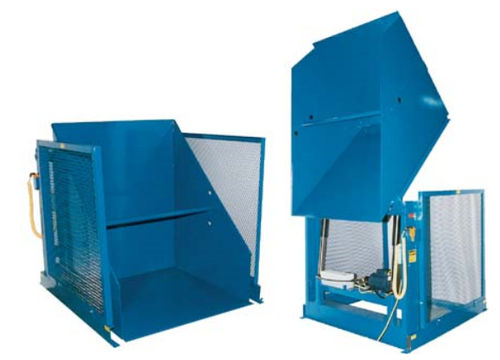

Hydraulic tipping station HBD series

pallet

Designed for controlled dumping of material from boxes, crates and other types of containers. Lowered height of only 1⁄2" allows for pallet truck loading and unloading. Retaining bar for use with 24", 30" and 36" high containers (contact factory for other hold-down bar heights). Maximum dump angle is 45°. Chute reach is 10°. Internal 2HP power unit and hand held control standard. Protective mesh side screens included. Heavy-duty welded steel construction. Painted blue finish. Features: * Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life. * Voltage - 208-230/460 Volt, 60 cycle, 3 phase. * Cast iron pump with integral valving including pressure relief valve, check valve, down solenoid valve and pressure compensated flow control valve. * 24 Volt, fused control circuit to protect operator. * Hydraulic Actuators have internal brass velocity fuse w/stainless steel spring for emergency lockup. * Welding to meet A.W.S.
