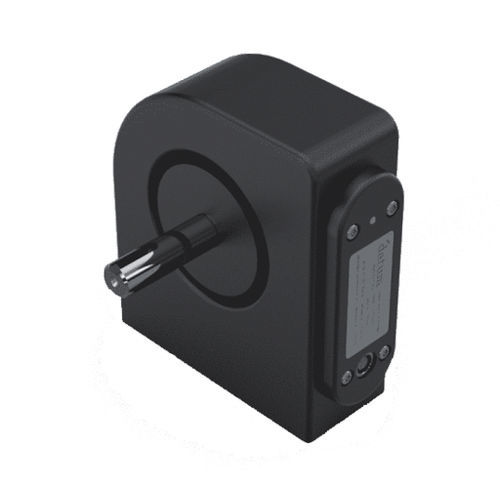

Non-contact torque transducer RS425

rotarydigital4-20 mA

The RS425 torque transducer utilises a strain gauged shaft for accurate and reliable torque measurement and a set of rotating on shaft conditioning electronics, the digital signals are transmitted to the non-rotating part of the system or stator providing a reliable and highly accurate torque measurement solution. • Signal outputs : RS485 as standard • Standard range : 0-10Nm to 0-30,000Nm • Output data : 1-4000sps • Mechanical connection : Keyway or Spline Shaft • Operating envelope : +/- 3 to 5mm. • Modular elements : 3Nm and up to 500kNm • Ideal for fully sealed or underwater applications : IP 68 • Rotor : 2 to 5 mm gap • Analogue signal : 4-20mA or 0-10VDC output Compatible with LABVIEW software Alternative Spline shafts are available as an alternative Separate Set Completely separate rotor and stator set IP 68 Ideal for fully sealed or underwater applications
