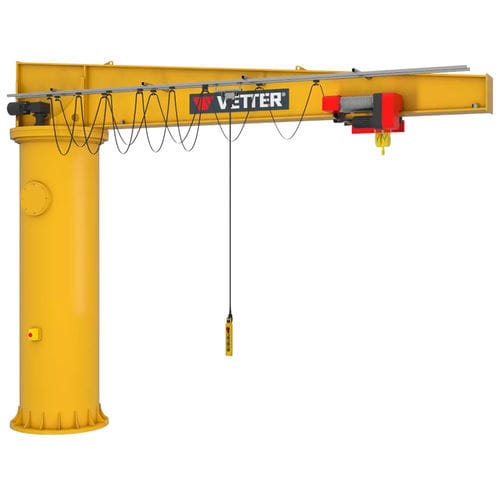

Pillar jib crane B
360°electriclifting

Pillar jib crane - B - VETTER Krantechnik GmbH - 360° / electric / lifting
Pillar jib crane - B - VETTER Krantechnik GmbH - 360° / electric / lifting
Pillar jib crane - B - VETTER Krantechnik GmbH - 360° / electric / lifting - image - 2
Pillar jib crane - B - VETTER Krantechnik GmbH - 360° / electric / lifting - image - 3
Pillar jib crane - B - VETTER Krantechnik GmbH - 360° / electric / lifting - image - 4
Pillar jib crane - B - VETTER Krantechnik GmbH - 360° / electric / lifting - image - 5
Pillar jib crane - B - VETTER Krantechnik GmbH - 360° / electric / lifting - image - 6
Add to favorites
Compare this product


Characteristics

Type
pillar
Rotating degree
360°
Other characteristics
lifting, rotary, electric, ATEX
Load

Min.: 4,000 kg
(8,818 lb)

Max.: 40,000 kg
(88,185 lb)

Span

Min.: 4,000 mm
(157.48 in)

Max.: 20,000 mm
(787.4 in)

Height under upper

Min.: 2,500 mm
(98.43 in)

Max.: 12,000 mm
(472.44 in)

Overall height

Min.: 2,750 mm
(108.27 in)

Max.: 12,250 mm
(482.28 in)

Description

• Designed for large capacity and outreach • Comfortable, smooth electrical slewing of jib arm by positive ball bearing slewing ring • Infinite slewing by 360° thanks to power supply by slip-ring assembly • Outdoor use possible • Suitable for explosion protection according to ATEX (option) • Column height and jib arm length can be adjusted to conditions on the spot • Broad range of fastening options provides for easy installation The huge one The column-mounted jib arm crane B has been designed to perform extraordinary jobs. You can use the crane with its infinite slewing range under the toughest and most difficult conditions where capacities of up to 32 t are required: In warehouses, power plants, steel works, foundries but also on large-volume excavators and dredgers. With its standard electrical slewing gear by ball bearing slewing ring it provides for comfortable and smooth slewing and enhanced ease of operation. The column-mounted crane B perfectly meets your requirements for indoor and outdoor use since column height and jib arm length can be adjusted individually. Regarding fastening options, you can make your individual choice from fastening on foundation using anchors, TopAnchor, or CompactAnchor, and base flange for fastening on a steel structure. Moreover, we offer a suitable power supply, electric wire rope hoists with electric trolley, radio remote control, hot-dip galvanizing, Ex-proof design according to ATEX, sophisticated control systems up to automatic crane operation as well as various other accessories.
