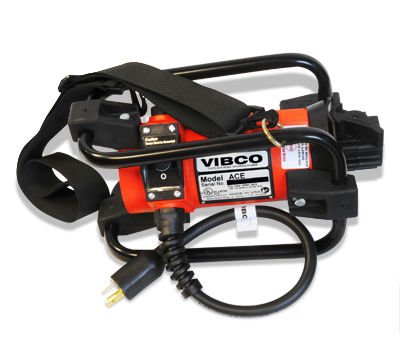

Electric concrete internal vibrator JVS, ACE series

JVS & ACE Electric Internal Vibrators Interchangeability is VIBCO's solution to making the tough job easy. • Heavy Duty Universal Motor • Interchangeable Heads • Interchangeable Flexible Shafts • Reversible Shafts for Double Life • Shafts Available Up to 21 Ft. 3 EASY STEPS TO SELECT 1. MOTOR OPTIONS: You have 2 motors to choose from; Model JVS 1.5 HP or Model ACE 2.5 HP. 2. HEAD SIZE OPTIONS: 3/4" - 1" head diameter use: thinnest prestressed sections of burial vaults, manholes,etc. 1-1 /4" - 1-112" head diameter use: thin prestressed sections manholes, pipes, septic tanks, etc. 1-3/4" head diameter use: the most versatile and general purpose head; ideal for floors, slabs, walls, columns, bridge decks, railings, 2" head diameter use: all around size capable of handling stiff low slump mixes, heavy open forms, large foundations, retaining walls/ 2-1 /2" head diameter use: enough force for the stiffest low slump heavy bridge work, etc. 3. FLEXIBLE SHAFT SELECTION: Since the motor is carried at waist height when wearing the shoulder strap, choose the strap length of appropriate waist height plus form depth. Each Motor has 3 different lengths to choose from A Versatile and Durable Solution VIBCO's Silent electric vibrators are totally enclosed and can be used inside or outside, in dust, dirt, rain or snow. They solve a wide variety problems - speeding the flow of bulk materials through any size bin, hopper or chute, packing material in drums and bags, consolidating concrete, aiding the efficiency of material through screens - whatever your challenge, VIBCO has an electric vibrator solution.
