Pneumatic vibrator FBS series

turbinemulti-product

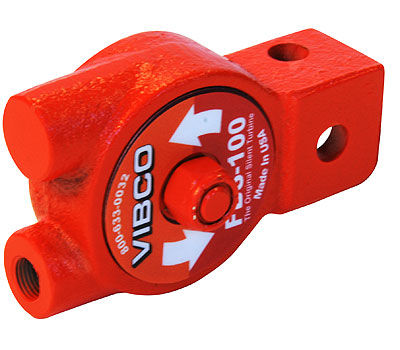

VIBCO FBS Silent Pneumatic Turbine Vibrators are specially designed for use as a match plate vibrator on foundry molding machines. Use VIBCO FBS Turbine Vibrators on any new or existing match plate application Great performance with a fast start, high vibrations (revolutions) per minute, and a built-in muffler Low cost solution, rated for intermittent duty Virtually silent and maintenance free Why replace a ball vibrator with a turbine vibrator? LOWER NOISE — average turbine vibrator is around 72 dB LOWER OPERATING COSTS— turbine vibrators do not require lubrication LOWER ENERGY CONSUMPTION — turbine vibrators use 50% less air LONGER LIFE — turbine vibrators typically outlast ball vibrators 3 to 1 GREATER EFFICIENCY — turbine vibrators maintain speed and efficiency throughout life vs. ball vibrators that start to lose speed and efficiency from the very start The Facts Noise — Turbine vibrators feature virtually silent operation — just 65-75 dB throughout their entire service life. As ball vibrators wear and the ball and ballrace become pitted, the noise they produce rises sharply and can reach up to 100 dB. Maintenance — Turbine vibrators features sealed bearings that are prelubricated for life and do not require additional lubrication. Ball vibrators require airline lubrication.
