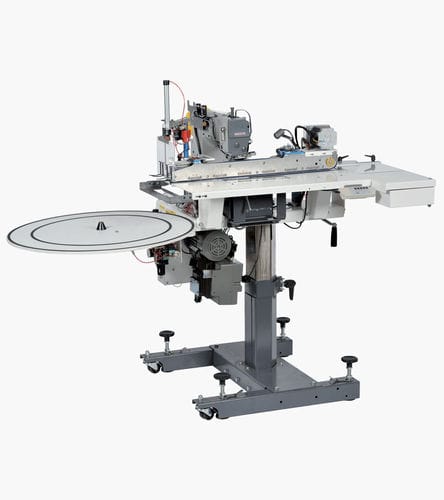

Length hemming line V701

double lockstitchneedle lockstitchfor pockets

The automatic pocket hemming series, made by the three models V700, V701 and V702, is a line of flexible units with a high level of efficiency and quality output. One unit can supply more sewing lines, following the concept of modular production and space maximization. The units can perform an average production of 1500 up to 2000 pockets per hour, according to the model. The innovative transport system allows the units to perform on many kind of fabrics thickness from workwear to denim and stretch materials. Sewing Head: Mitsubishi or Vi.Be.Mac. 2 needle lock stitch Sewing Speed: 2400 rpm Stitch Length: from 2 mm to 4,5 mm Standard Needle Gauges: 1/4” (6,4 mm) Optional Needle Gauges: 1/8” (3,2 mm) - 5/32” (4 mm) - 3/16” (4,8 mm) - 7/32” (5,6 mm) - 1/4” (6,4 mm) - 9/32” (7,2 mm) - 5/16” (8 mm) - 3/8” (9,5 mm) - 1/2” (12,7 mm) Productivity: 1500/1800 pockets x hour Power Supply Voltage: 220 V 50/60 Hz Sewing Machine Motor: Mitsubishi XCG 554 220Y - 550 W Control Box: XCG MFY 2005 Air consumption: 3L/min (without loader)
