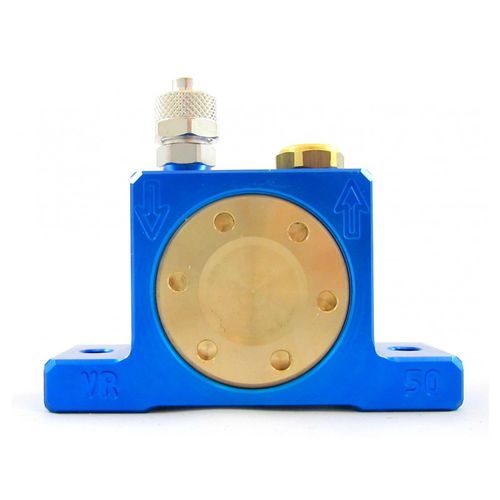

Pneumatic vibrator VR seriesrotaryrollerhigh-frequency
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- rotary, roller
- Other characteristics
- high-frequency, aluminum
- Force
2,800 N, 4,900 N, 7,800 N, 9,700 N
- Rotational speed
17,600 rpm, 25,200 rpm, 29,500 rpm, 40,500 rpm
(110,584.1 rad.min-1, 158,336.3 rad.min-1, 185,354 rad.min-1, 254,469 rad.min-1)
Description
This item is sent with pipe inlets and no screws, being able to operate at high frequencies, benefiting from a painted aluminum body. The removal steel flange and steel roller rolling in high frequencies including on polished and heavy steel tracks are other advantages. The low-cost maintenance and variation of amplitude and frequency in accordance to the air delivery or air pressure are advantages too.
Dry and lubricated air are both required, while admission is done by either the top or side. Note that a vertical or horizontal fixing can be used at the vertical position in all cases, and customers should never use the roller in the horizontal position.
