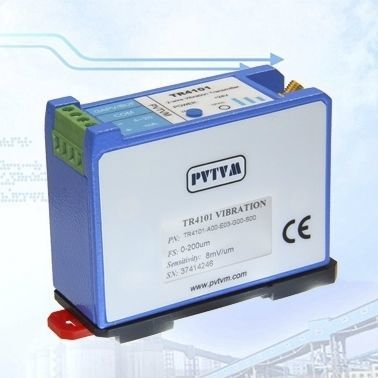

Vibration transmitter TR4101

2-wire loop powered transmitter for Radial Shaft Vibration Does not require proximity probe driver 4-20mA output Buffered output/ GAP Compatible with other manufacturers’ proximity probes (5mm, 8mm and 11mm) Powered by DCS/PLC directly The TR4101 is a cost-effective solution for monitoring the radial vibration on the shaft of balance of plant machines. The TR4101 combines the proximity probe driver and the signal conditioning circuit into one package. It works with a proximity probe and extension cable as a system. Electrical Power Supply: 16-30VDC Frequency Response (±3dB): 2.0 - 3,000Hz Probe and Cable: 5 meter or 9 meter proximity probe and extension cable works with 5mm, 8mm, and 11mm probes Proximity probe includes: TM0180, TM0105, TM0110, 3300, 7200 and 990 series Sensor Linear Range (reference with AISI 4140 steel): 5mm, 8mm probe: 2.0 mm (80mil) Approximately 0.25mm (10mil) to 2.25mm (90mil) 11mm probe: 4.0mm (160mil) Approximately 0.4mm (15mil) to 4.4mm (175mil) Overall Vibration: 4-20mA 2-wire, load Buffered Output/ GAP: Original vibration, un-filtered Nominal: 2-18VDC Impedance: 20 kΩ Maximum cable distance: 3.0m (10ft) Sensitivity: 8.0mV/um (200mV/mil) nominal Maximum Load: 50×(Vs-16) Where Vs is the system power supply Isolation: > 500Vrms; circuit to case System OK: System OK: output 4-20mA System Not OK: output < 3.6mA Physical Height: 75mm (2.95”) Weight: 0.5 kg (1.0 lb) Environmental Temperature: Operation: -40℃ to +70℃ Storage: -40℃ to +100℃ Humidity: 90% non-condensing
