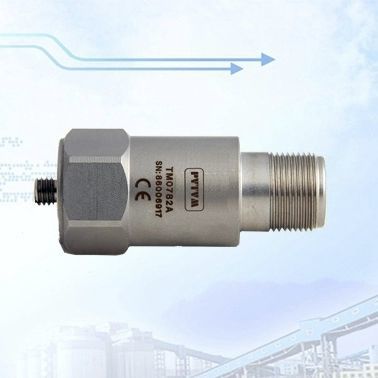

1-axis accelerometer TM0782A-K

piezoelectric

The TM0782A-K accelerometer kit consists of one accelerometer and one 5 meter cable. This accelerometer kit directly interfaces with PVTVM’s signal conditioners: DTM, TR transmitters, DM Dual Monitors and PT580 vibration switches to measure case vibration in acceleration or velocity. Electrical Sensitivity: 100mV/g, @ 25oC, ±10% Frequency Response: 0.5 - 10,000Hz (±3dB) Acceleration Range: 50g Isolation: Fully isolated Electrical Noise: 0.0007g Power Requirement: 2 - 10mA constant current 18 - 30VDC Bias Voltage: 10 - 14VDC Resonance Frequency: 30 kHz Maximum Transmission Distance: 300 meters (1,000 feet) Environmental and Physical Temperature Range: -50oC to +120oC Environmental Protection: IP67 Weight: 90 grams Case Material: Stainless Steel Mounting: 1/4-28UNF tapped hole Installation Torque: 29N x M Connection A: Power (red) B: COM (white) Shield
