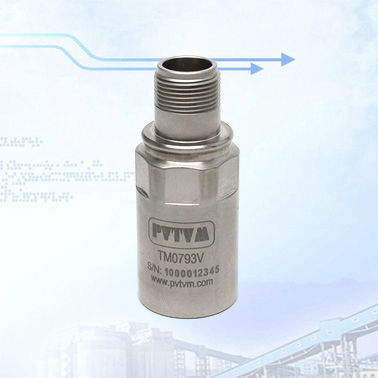

Piezoelectric vibration velocity transducer TM0793V-K

linear

The TM0793V-K velocity transducer kit consists of one velocity transducer and one 5 meter cable. This velocity transducer kit directly interfaces with PVTVM’s signal conditioners: DTM, TR transmitters, DM dual monitors and PT580 vibration switches to measure case vibration in velocity or displacement. Electrical Sensitivity: 4.0mV/mm/sec (100mV/in/sec), @ 25oC, ±10% Velocity Range: 5.0V pk Amplitude Nonlinearity: 1% Frequency Response: 2 - 7,000Hz (±3dB) Isolation: Fully isolated Transverse Sensitivity: < 5% or axial Power Requirement: 3 - 10mA constant current 18 - 30VDC Resonance Frequency: 15 kHz Bias Voltage: 10 - 14VDC Maximum Transmission Distance: 300 meters (1,000 feet) Environmental and Physical Temperature Range: -50oC to +120oC Environmental Protection: IP67 Weight: 250 grams Case Material: Stainless steel Mounting: 1/4-28UNF tapped hole Hazardous Area Approvals: ATEX: II 1 G Ex ia IIC T4; CSA: I.S. Class l, Div. 1, Groups A, B, C & D Exia IIC T4 Class I, Div.2, Groups A, B, C, D Non- Incendive PCEC: Ex ia IIC T4X TR CU: 0Ex ia IIC T4 X № ТС RU C-US.ГБ05.В.00477 NANIO CCVE
