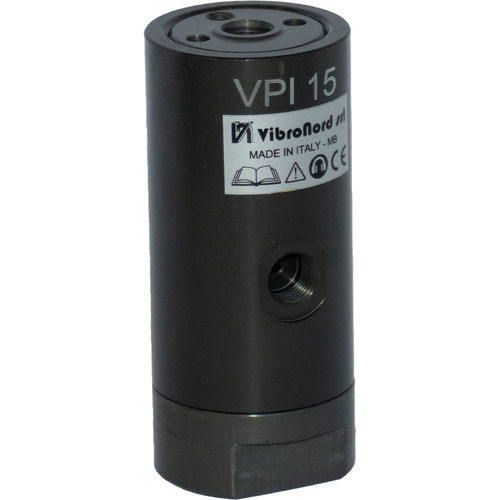

Pneumatic vibrator VPI 15linearimpact pistonincineration
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- linear, impact piston
- Product applications
- incineration, industrial, for hopper, for concrete, for silos, chemical process, for the pharmaceutical industry, for the food industry, cement, for rubber and plastic applications, for process water treatment units, liquid fertilizer, construction, for the recycling industry, for cisterns, building, for asphalt, for mills, for ceramics, detergent, for marble, for conveyor, canning industry, for dairy products, for dry food, handling, filtration unit, for mining equipment, for test benches, solid waste, for biomass
- Other characteristics
- aluminum, compact, bronze
- Force
28 N, 59 N, 83 N
- Rotational speed
3,840 rpm, 5,100 rpm, 6,000 rpm
(24,127.4 rad.min-1, 32,044.2 rad.min-1, 37,699.1 rad.min-1)
Description
The perfect solution for transport and handling lines, test benches or machinery with restricted areas thanks to theri small footprint
• Extremely quiet
• Unidirectional excitation
• Resistant to extreme ambient conditions
Our best-in-class linear vibrators lineup features four devices able to deliver uni-directional excitation at a very low noise level. Ideal solution for conveyors, test benches or installation in tight spaces thanks to their compact shape.
Machined at the highest level of technology to ensure best-in-class longevity.
Requirements
Lubricated and filtered (≤5μm) air is required
Operating pressure : from 2 to 6 Bar
Operating ambient temperature: -20°C to 100 °Cwe
