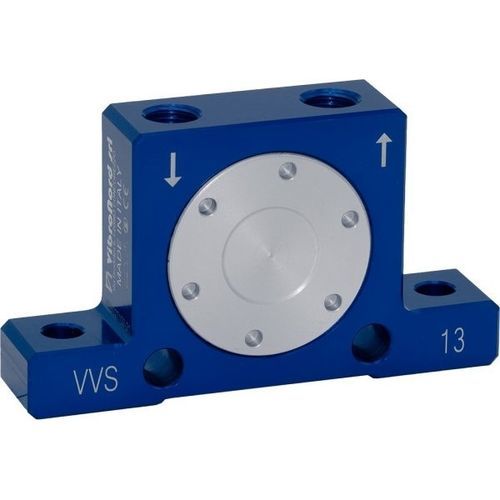

Pneumatic vibrator VVS 13rotaryballfor rubber and plastic applications
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- rotary, ball
- Product applications
- for rubber and plastic applications, for the food industry, for hopper, for bulk materials, for dispensers, for dairy products, for pipelines, for dry food, for concrete, for silos, industrial, for the pharmaceutical industry, cement, chemical process, for powders, for mining equipment, filtration unit, feeder, slide, for granulates, canning industry, for process water treatment units, for bulk materials, construction, detergent, incineration, for biomass, conveying, for asphalt, for the recycling industry, for ceramics, liquid fertilizer, for marble, for conveyor
- Other characteristics
- aluminum
- Force
219 N, 491 N, 689 N
- Rotational speed
11,700 rpm, 17,520 rpm, 20,760 rpm
(73,513.3 rad.min-1, 110,081.4 rad.min-1, 130,438.9 rad.min-1)
Description
Our ball vibrators lineup features 8 devices able to deliver an economic but effective solution when generic vibration is required.
• Economic
• Long lasting
• Easily adjustable rpm
The particularly refined machining process allow our ball vibrators to last longer than average in the industry, providing a safe and constant vibration to the machine to which they are attached.
Steel hardened tracks are machined to give the least friction surface to the sphere that rotates on them, delivering a low-noise vibration.
Requirements
Lubricated and filtered (≤5μm) air is required
Operating pressure : from 2 to 6 Bar
Operating ambient temperature: -20°C to 100 °Cwe
