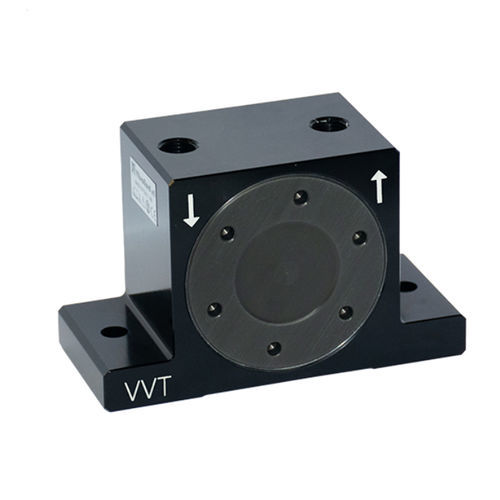

Pneumatic vibrator VVT 10rotaryturbinefor hopper
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- rotary, turbine
- Product applications
- for hopper, for concrete, for powders, incineration, for dairy products, for industrial vehicles, for silos, industrial, for rubber and plastic applications, detergent, for biomass, for the pharmaceutical industry, for mining equipment, for the food industry, cement, construction, for asphalt, for dry food, filtration unit, canning industry, for the recycling industry, solid waste, for process water treatment units, slide, chemical process, for ceramics, for marble, liquid fertilizer, for pipelines
- Other characteristics
- aluminum, high-frequency
- Force
686 N, 1,116 N, 1,454 N
- Rotational speed
23,280 rpm, 29,700 rpm, 33,900 rpm
(146,272.6 rad.min-1, 186,610.6 rad.min-1, 213,000 rad.min-1)
Description
Our turbine pneumatic vibrators lineup features twelve devices to match all the possible applica-tions in the industry. This lineup is ideal when at the same pressure, high frequencies are required. In addition, turbine vibrators do not require lubricated air when functioning, which makes them the ideal choice in food industry application or when air with impurities cannot be discharged in the ambient.
• Durability
• Low Noise
The particularly refined machining process allow our turbine vibrators to last longer than average in the industry, providing a safe and constant vibration to the machine to which they are attached.
The high speed ball bearings inside allow to reach high frequencies.
Requirements
Lubricated and filtered (≤5μm) air is required
Operating pressure : from 2 to 6 Bar
Operating ambient temperature: -20°C to 100 °Cwe
Catalogs
No catalogs are available for this product.
See all of Vibronord‘s catalogs
