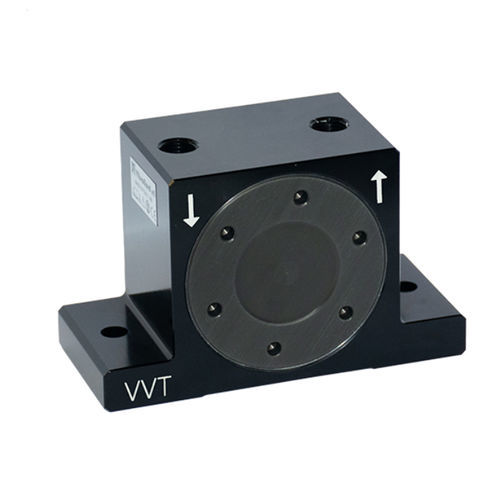

Pneumatic vibrator VVT 12
rotaryturbinefor silos

pneumatic vibrator
pneumatic vibrator
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
rotary, turbine
Product applications
for silos, for concrete, for mills, for mining equipment, for the recycling industry, industrial, for the pharmaceutical industry, for the food industry, for powders, slide, cement, for biomass, for rubber and plastic applications, for dry food, for pipelines, filtration unit, construction, for asphalt, liquid fertilizer, canning industry, for ceramics, for marble, chemical process, solid waste, incineration, for process water treatment units
Other characteristics
aluminum, high-frequency
Force

591 N, 1,007 N, 1,254 N

Rotational speed

21,000 rpm, 27,420 rpm, 30,600 rpm
(131,946.9 rad.min-1, 172,284.9 rad.min-1, 192,265.5 rad.min-1)

Description

Our turbine pneumatic vibrators lineup features twelve devices to match all the possible applica-tions in the industry. This lineup is ideal when at the same pressure, high frequencies are required. In addition, turbine vibrators do not require lubricated air when functioning, which makes them the ideal choice in food industry application or when air with impurities cannot be discharged in the ambient. • Durability • Low Noise The particularly refined machining process allow our turbine vibrators to last longer than average in the industry, providing a safe and constant vibration to the machine to which they are attached. The high speed ball bearings inside allow to reach high frequencies. Requirements Lubricated and filtered (≤5μm) air is required Operating pressure : from 2 to 6 Bar Operating ambient temperature: -20°C to 100 °Cwe
