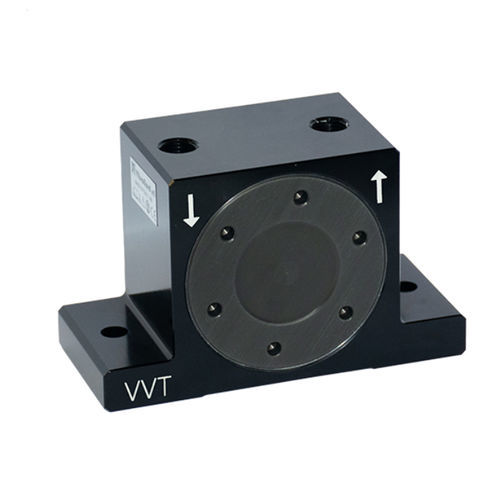

Pneumatic vibrator VVT 16rotaryturbinefor silos
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- rotary, turbine
- Product applications
- for silos, for hopper, for powders, slide, for concrete, industrial, detergent, for dairy products, for mills, for biomass, for the pharmaceutical industry, liquid fertilizer, for pipelines, chemical process, cement, construction, for asphalt, for ceramics, for process water treatment units, for marble, filtration unit, for dry food, for the recycling industry, solid waste, for rubber and plastic applications, canning industry, incineration, for mining equipment
- Other characteristics
- aluminum, high-frequency
- Force
1,124 N, 1,708 N, 2,183 N
- Rotational speed
15,280 rpm, 18,840 rpm, 21,300 rpm
(96,007.1 rad.min-1, 118,375.2 rad.min-1, 133,831.8 rad.min-1)
Description
Our turbine pneumatic vibrators lineup features twelve devices to match all the possible applica-tions in the industry. This lineup is ideal when at the same pressure, high frequencies are required. In addition, turbine vibrators do not require lubricated air when functioning, which makes them the ideal choice in food industry application or when air with impurities cannot be discharged in the ambient.
• Durability
• Low Noise
The particularly refined machining process allow our turbine vibrators to last longer than average in the industry, providing a safe and constant vibration to the machine to which they are attached.
The high speed ball bearings inside allow to reach high frequencies.
Requirements
Lubricated and filtered (≤5μm) air is required
Operating pressure : from 2 to 6 Bar
Operating ambient temperature: -20°C to 100 °Cwe
Catalogs
No catalogs are available for this product.
See all of Vibronord‘s catalogs
