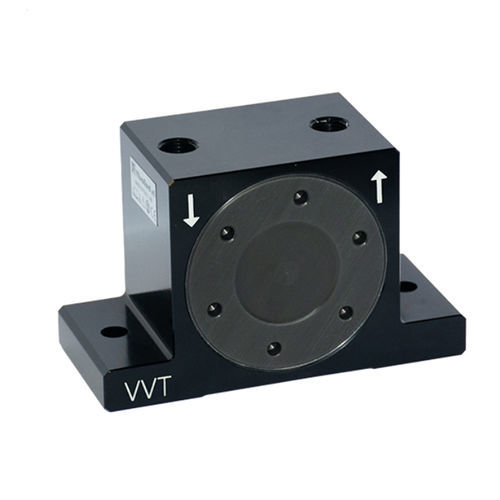

Pneumatic vibrator VVT 25rotaryturbinecement
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- rotary, turbine
- Product applications
- cement, for hopper, for concrete, for dry food, for process water treatment units, filtration unit, for the recycling industry, for mining equipment, for silos, industrial, for biomass, for pipelines, chemical process, detergent, slide, for the pharmaceutical industry, construction, for asphalt, for ceramics, for mills, canning industry, for marble, liquid fertilizer, for powders, for rubber and plastic applications, incineration, for dairy products
- Other characteristics
- aluminum, high-frequency
- Force
1,836 N, 3,103 N, 4,016 N
- Rotational speed
11,400 rpm, 14,820 rpm, 16,860 rpm
(71,628.3 rad.min-1, 93,116.8 rad.min-1, 105,934.5 rad.min-1)
Description
Our turbine pneumatic vibrators lineup features twelve devices to match all the possible applica-tions in the industry. This lineup is ideal when at the same pressure, high frequencies are required. In addition, turbine vibrators do not require lubricated air when functioning, which makes them the ideal choice in food industry application or when air with impurities cannot be discharged in the ambient.
• Durability
• Low Noise
The particularly refined machining process allow our turbine vibrators to last longer than average in the industry, providing a safe and constant vibration to the machine to which they are attached.
The high speed ball bearings inside allow to reach high frequencies.
Requirements
Lubricated and filtered (≤5μm) air is required
Operating pressure : from 2 to 6 Bar
Operating ambient temperature: -20°C to 100 °Cwe
