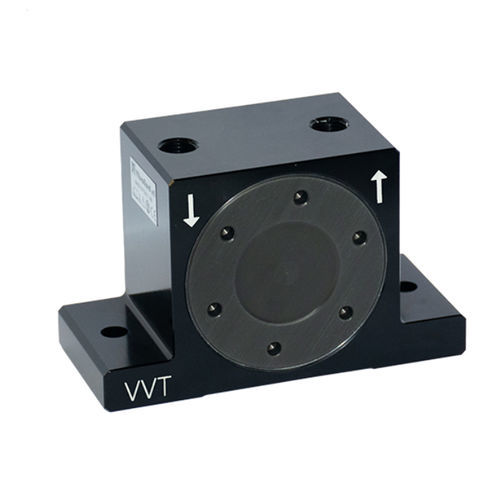

Pneumatic vibrator VVT 29rotaryturbineconstruction
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- rotary, turbine
- Product applications
- construction, for hopper, for mining equipment, for silos, for the pharmaceutical industry, canning industry, for dry food, for the food industry, cement, for biomass, for rubber and plastic applications, for asphalt, for dairy products, for the recycling industry, for ceramics, for marble, solid waste, for pipelines, for mills, detergent, incineration, liquid fertilizer, for process water treatment units, for powders, filtration unit, chemical process, slide
- Other characteristics
- aluminum, high-frequency
- Force
1,804 N, 2,975 N, 3,927 N
- Rotational speed
10,980 rpm, 14,100 rpm, 16,200 rpm
(68,989.4 rad.min-1, 88,592.9 rad.min-1, 101,787.6 rad.min-1)
Description
Our turbine pneumatic vibrators lineup features twelve devices to match all the possible applica-tions in the industry. This lineup is ideal when at the same pressure, high frequencies are required. In addition, turbine vibrators do not require lubricated air when functioning, which makes them the ideal choice in food industry application or when air with impurities cannot be discharged in the ambient.
• Durability
• Low Noise
The particularly refined machining process allow our turbine vibrators to last longer than average in the industry, providing a safe and constant vibration to the machine to which they are attached.
The high speed ball bearings inside allow to reach high frequencies.
Requirements
Lubricated and filtered (≤5μm) air is required
Operating pressure : from 2 to 6 Bar
Operating ambient temperature: -20°C to 100 °Cwe
Catalogs
No catalogs are available for this product.
See all of Vibronord‘s catalogs
