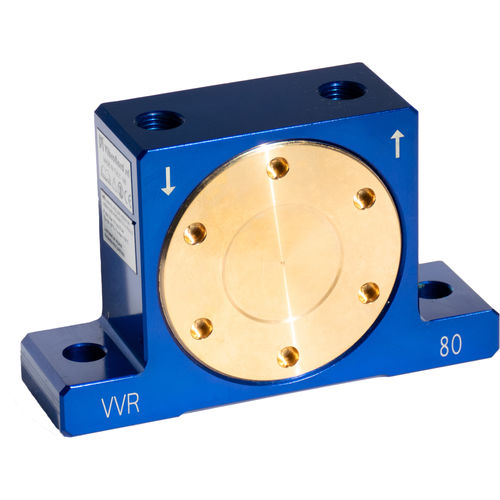

Pneumatic vibrator VVR 80
rotaryrollerfor the pharmaceutical industry

pneumatic vibrator
pneumatic vibrator
pneumatic vibrator
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
rotary, roller
Product applications
for the pharmaceutical industry, for hopper, canning industry, for mining equipment, for process water treatment units, filtration unit, for mills, slide, detergent, for the recycling industry, for concrete, for silos, chemical process, industrial, cement, for biomass, building, construction, for asphalt, solid waste, for pipelines, for ceramics, for rubber and plastic applications, liquid fertilizer, for dairy products, for dry food, for marble, incineration
Other characteristics
high-frequency, bronze
Force

1,227 N, 3,584 N, 4,490 N

Rotational speed

12,360 rpm, 21,120 rpm, 23,640 rpm
(77,660.2 rad.min-1, 132,700.9 rad.min-1, 148,534.5 rad.min-1)

Description

Our roller vibrator series grants a solution for medium-long term and heavy duty applica-tions. Our extremely refined machining and assembly procedures, combined with top quality materials as bronze, deliver an extroar-dinary longevity. • High force Resistant to extreme working conditions Our roller pneumatic vibrators series features five sizes of devices to accomodate all the possible requirements in the Industry. Precisely machined to achieve the highest longevity, effectiveness and sound efficiency. Requirements Lubricated and filtered (≤5μm) air is required Operating pressure : from 2 to 6 Bar Operating ambient temperature: -20°C to 100 °Cwe
