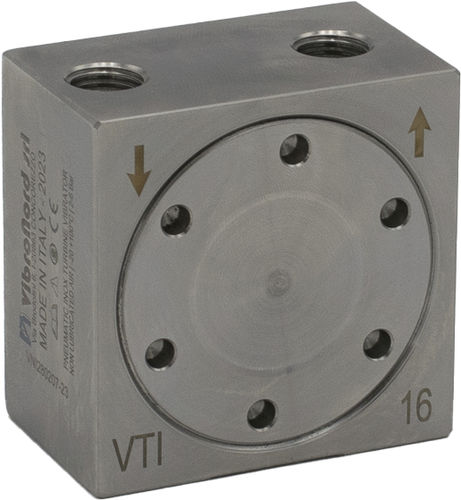

Pneumatic vibrator VTI 16
turbinefor hopperfor concrete

Pneumatic vibrator - VTI 16 - Vibronord - turbine / for hopper / for concrete
Pneumatic vibrator - VTI 16 - Vibronord - turbine / for hopper / for concrete
Pneumatic vibrator - VTI 16 - Vibronord - turbine / for hopper / for concrete - image - 2
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
turbine
Product applications
for hopper, for concrete, for silos, industrial, filling, for the pharmaceutical industry, for the food industry, for conveyor, bagging, slide, for powders, for cisterns, for tank, for food products, for plastics, feeder, for big bags, for medical applications, for cosmetic products, for agricultural machinery, handling, for bulk materials, for granulates, for agricultural applications, silo truck unloading, for concrete mixers, for empty container, for separation units, for packaging machines
Other characteristics
high-frequency, compact, stainless steel
Force

Max.: 2,183 N

Min.: 1,124 N

Rotational speed

Max.: 21,300 rpm
(133,831.8 rad.min-1)

Min.: 15,280 rpm
(96,007.1 rad.min-1)

Description

Our lineup of Stainless Steel Turbine Vibrators made of AISI 316L has been developed to respond to the demand of the sectors where it is needded to move items in sterile environments or when machineries are subject to frequent washings and cleanings. The lineup is composed by four models to address the requirment of different size of machinery and material to move. From few grams to hundreds of kgs. They work extremely quietly and with dry air Our Vibrators are made of first choice material and entirely in Italy. They are best in Pharmaceutical and Food and Chemical industry as they do not interact with the sorrounding environment. In case of difficulty in choosing the correct model, contact our expert to get a custom suggestion for your plant. Requirements Non Lubricated and filtered (≤5μm) air is required Operating pressure : from 2 to 6 Bar Operating ambient temperature: -20°C to 100 °Cwe
