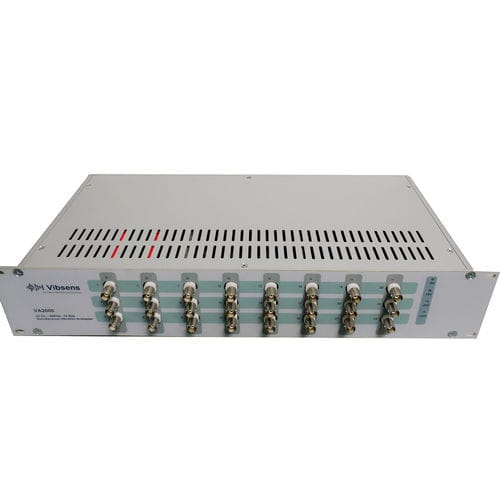

Vibration analyzer with sound analyzer VA2000

for predictive maintenancefor rotating-machine balancingportable

VA2000 is a condition monitoring system which can be used for multi-channel data acquisition, signal analysis and data processing. VA 2000 measurement system has been designed for on-line simultaneous data acquisition and presentation. It combines features of many instrumentation devices like oscilloscopes, filters, signal conditioners and data acquisition devices into a single device. Data communication with PC is performed by LAN/WAN network communication methods enabling users for easy remote operating of data processing and data storage. It can share data by a server to multiple clients over a network, if needed, enabling multiple users to perform signal analysis simultaneously on a machine. It has data storage ability and a specific software application for offline data review and analysis from historical data. According to the above mentioned available enclosures VA2000 can be used in application in need of fully portable system or fixed installation rack mounted locations. Moreover, VA2000 can be ordered in configurable input channels (6, 12 or 24) and customer can order the product according to the number of channels needed. Flexible transducer interface makes it easy to connect virtually any kind of transducer with IEPE/Voltage/Current output such as accelerometer, velocity transducer, proximity probes, force transducer, microphone to VA2000 inputs just by changing a DIP switch configuration. For analysis of phase and rotating speed, any of the input channels can be connected to a tachometer / Keyphasor® signal for order analysis.
